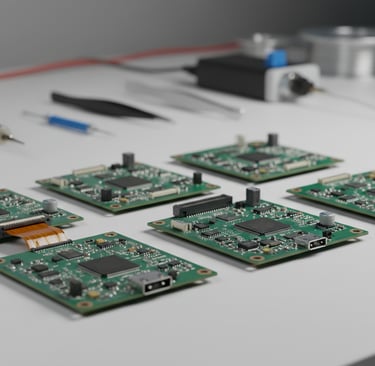

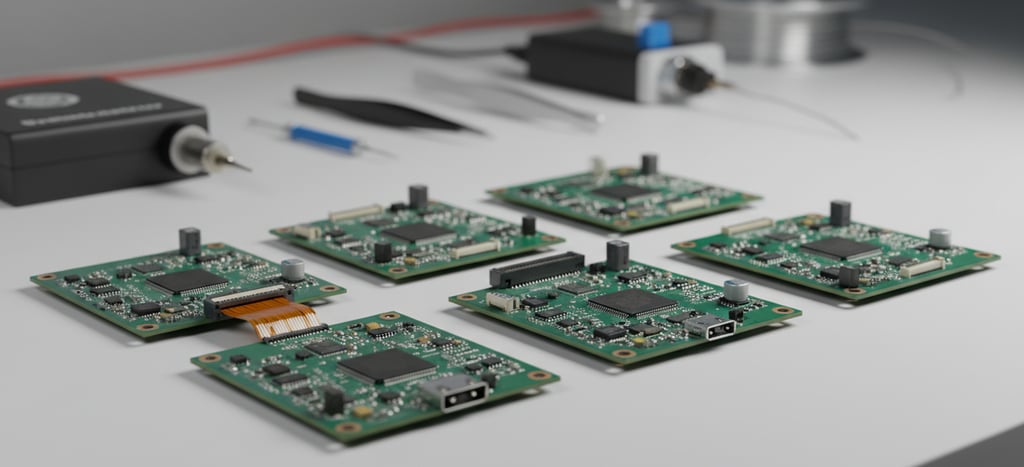

Consumer Electronics PCB Assembly

Advanced PCBA for the Consumer Era

As devices shrink while power demands escalate, OminiPCBA bridges the gap between precision engineering and high-volume EMS manufacturing. For wearables, smart home tech, and IoT device assembly, consistent reliability is paramount. We align advanced technical expertise with scalable production, ensuring complex high-density PCBs are manufactured to exact specifications. Our refined processes maintain signal integrity in compact footprints, delivering market-ready hardware that excels in performance and durability.

OminiPCBA transforms sophisticated designs into dependable hardware through rigorous execution. For global procurement teams, managing tight PCBA layouts becomes seamless through our optimized production workflows. We prioritize total quality control, integrating strategic material sourcing with multi-stage validation. By streamlining the transition from NPI prototyping to mass production, we minimize lead times and ensure batch-to-batch consistency. Our process-driven approach ensures your product launch meets stringent industry benchmarks without compromise.

Reliability

Long-life thermal cycling & vibration testing.

Precision

01005 component placement & high-density SMT.

EMPOWERING INNOVATION

“Excellence in every layer."

— Omini PCBA Engineering Team

Engineering-Grade Capabilities

Omini PCB assembly services are backed by a robust technical foundation. We maintain ultra-low tolerances and utilize the latest in soldering technology to ensure every joint is a masterpiece of conductivity and strength.

ENGINEERING EXCELLENCE

High-speed modular placement for unmatched efficiency.

Nitrogen reflow for superior solder joint quality.

Dedicated lines for NPI (New Product Introduction).

Why Omini PCBA Leads the Industry

Right where tech gets real, Omini PCBA works behind the scenes - blending sharp engineering with exact build quality. Because results matter most, we stick to what moves products forward: clear standards, proven methods, solid outcomes. What you get? Devices ready for the world, built without shortcuts.

Precision SMT Assembly

State-of-the-art Pick-and-Place machinery capable of handling 01005 components with ultra-fine pitch placement.

Advanced AOI & X-Ray

Rigorous inspection including 3D Automated Optical Inspection and X-Ray for BGA and concealed solder joints.

Certified Reliability

Adherence to IPC-A-610 Class 2 & 3 standards ensures your consumer electronics withstand the test of time.

Design for Manufacturing

Complimentary DFM reviews by Omini electronics manufacturing engineers to optimize yields and reduce costs.

Scalable Production

Flexible lines designed for both high-mix low-volume prototyping and high-volume mass production

Full Turnkey Solutions

Adherence to IPC-A-610 Class 2 & 3 standards ensures your consumer electronics withstand the test of time.

CORE COMPETENCIES

Versatile Industry Applications

OminiPCBA bridges the gap between consumer electronics and rugged industrial hardware. Whether launching smart tech or deploying IIoT devices, our comprehensive turnkey PCBA solutions are engineered for real-world durability. We integrate advanced SMT placement with robust through-hole assembly, verified by high-resolution 3D AOI and AXI (X-ray) scans. Our streamlined electronic component sourcing and high-volume manufacturing transform complex schematics into reliable, market-ready products that set the industry standard for performance.

ENGINEERING EXCELLENCE

The Omini PCBA Advantage

We don't just manufacture boards; we engineer reliability. Our facility is equipped with state-of-the-art Japanese SMT lines and German inspection systems, designed to meet the unforgiving standards of the automotive industry.

Uncompromising Quality Systems

Full traceability from component batch to finished assembly. We adhere to IPC-A-610 Class 2 and Class 3 standards.

Rapid Prototyping to Volume Production

Seamlessly scale from 10 units for R&D to 1,000,000+ units for global product launches with consistent yield.

Dedicated Engineering Support

Design for Manufacturing (DFM) reviews included to optimize your layout for thermal efficiency and assembly yield.

THE OMINI ADVANTAGE

Supply Chain Resilience

Strategic sourcing of automotive-grade AEC-Q qualified components.

Frequently Asked Questions

1.What is the typical lead time for consumer electronics PCBA prototypes?

At Omini PCBA, we offer rapid prototyping with turnaround times as fast as 24-48 hours once all components and files are received. Standard prototype runs typically ship within 5-7 working days.

2.Can Omini PCBA handle high-density SMT and micro-BGA placement?

Yes. Our high-precision assembly lines are equipped with advanced pick-and-place machines that handle components as small as 01005 and micro-BGAs with 0.35mm pitch. We also provide 3D X-Ray inspection for these complex assemblies.

3.How does Omini ensure the quality of sourced components?

We maintain a rigorous vendor qualification program. All components are sourced from authorized distributors or vetted suppliers. For critical parts, we perform counterfeit detection and electrical testing before assembly.

4.Do you offer Design for Manufacturing (DFM) support?

Absolutely. Every project submitted for an Omini PCBA quote undergoes a professional DFM review. Our engineers analyze your Gerber files and BOM to identify potential manufacturing issues, helping to improve yield and reduce production costs.
